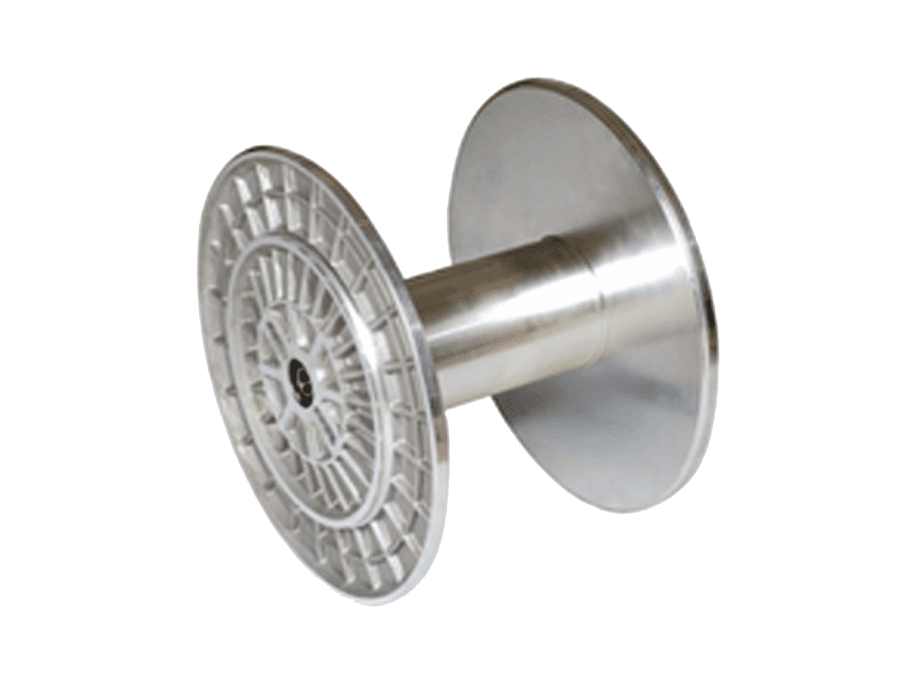

Warping Beam
High-Quality Aluminum Beams for Perfect Yarn Control
For narrow fabric industries, warping beams are specialized, sturdy cylinders (often aluminum), typically made of strong, polished aluminum, used in textile machinery like needle looms to hold and supply warp yarns for weaving narrow textiles (webs, tapes, ribbons, elastic, etc.,) onto looms, ensuring consistent tension and efficient, highquality production of materials like belts, shoelaces, and decorative trims
High-Strength Aluminum Construction
Flange made from premium grade, aluminum alloy for durability and lightweight performance.
Precision Engineering
Ensures smooth rotation, balanced loading, and consistent yarn delivery.
Superior Surface Finish
Polished surface prevents yarn abrasion and maintains yarn integrity.
Stable Yarn Tension
Designed to hold warp yarns uniformly for consistent weaving results.
Corrosion-Resistant
Long-lasting material ideal for high-speed production environments.
Low Maintenance
Robust build minimizes wear and extends service life.
Customizable Dimensions:
Available in various diameters, lengths, and flange types to suit different textile machines.
Compatible with Needle Looms & Narrow Fabric Machines:
Ideal for webbings, elastics, tapes, ribbons, and more.
| Material | Surface Finish | Balancing(W) | Regular Specification Dimensions |
| Flange is made of high strength aluminium alloy; it has excellent rigidity and durability. | Epoxy Spray coating prevents from corrosion and surface scratching OR Hard anodized. | Dynamic balancing ensures a smooth, vibration free operation with warp knitting machine at high speed rotation. | Flange Diameter: 305mm , 355mm, 375mm, 405mm, 455mm, 505mm, 533mm |
| Beam barrel made by mild steel; it has good tensile strength (470-490Mpa) with elongation 3.6%. | Working Width: 100mm to as per customer requirements. | ||
| Bore Diameter: 20mm / 25mm |
