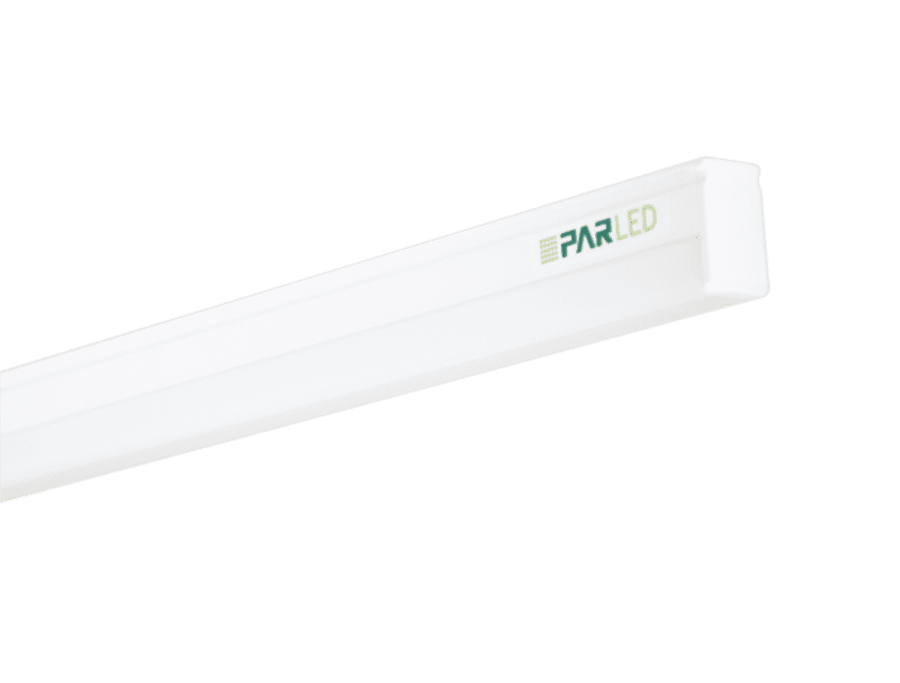

Home Star
Homestar is a versatile, general-purpose LED batten luminaire designed to elevate lighting across homes, workstations, small offices, and everyday spaces. Its sleek, slim extruded profile delivers a modern aesthetic while ensuring exceptional system efficiency, providing up to 60% energy savings compared to conventional T8 lamps.
Crafted with an integrated LED design for long-lasting performance, Homestar offers a choice of smooth, easy-to-clean opal diffusers that provide soft, uniform illumination. Whether for functional tasks or ambient lighting, Homestar delivers reliable, high-quality light for a brighter and more comfortable environment.
Slim & Stylish Extruded Profile
Contemporary, space-saving design that enhances the aesthetics of any home or workspace.
High Efficiency
Designed for maximum performance, delivering up to 60% energy savings compared to traditional T8 lamps.
Uniform Light Distribution
Provides comfortable, glare-free illumination ideal for work tables, living areas, and small offices.
Reliable Operation
Engineered with high-quality components for stable, flicker-free performance.
Low Maintenance Design
Integrated LED module ensures consistent performance with minimal servicing.
Cost Effective
Delivers optimal illumination performance at a competitive total cost of ownership.
Luminaire Construction
| Hosing Material | Hosing Finished | Optical Cover Material | Mounting Bracket |
| Anodized Extruded Alluminium (Copper Content <0.1%) | Powder Coated | High transmittance opal diffuser | Provided 2Nos SS Clip |
Optoelectronics
| Light Source | Color Rendering Index (CRI) | Correlated Color Temperature | Luminous Efficacy | Beam Angle of Light Source | Median Useful Life L70B50 |
| SMD Type High Power LED | >70 | 6500 k / 5000 k / 2700 k | 135 Lumens / Watt | 120° | 30,000 Hour(s) |
Electronics
| Driver | Setup Rise Holdup Time for Driver | Efficiency of Driver | THD in % |
| Constant Current with P.F. Correction | < 0.5 sec | ≥ 85% | ≤ 20% (Full Load) |
Protection
| Voltage Protection | Surge Protection | Ingress Protection Code |
| High Voltage protection upto 280V +/-10% | 2.5kV - Inbuilt in Driver | IP - 20 |
Operating & Electrical
| Voltage Input | Line Frequency | Power Factor | Working Temperature |
| 130 to 280 VAC | 50 Hz | ≥ 0.95 | − 10˚C - +50˚C. |
| Product Code | Ordering Code | System Power (W) | Rated Voltage (V) | Mains Current (A) | System Lumens (Lm) |
| PLHL 541 / 20 | PLHL 541 / 100 / 55 | 20 W | 230 VAC | 0.09 A | 2100 |
| PLHL 541 / 24 | PLHL 541 / 120 / 55 | 24 W | 230 VAC | 0.11 A | 2500 |
| PLHL 541 / 40 | PLHL 541 / 200 / 55 | 40 W | 230 VAC | 0.18 A | 4200 |
