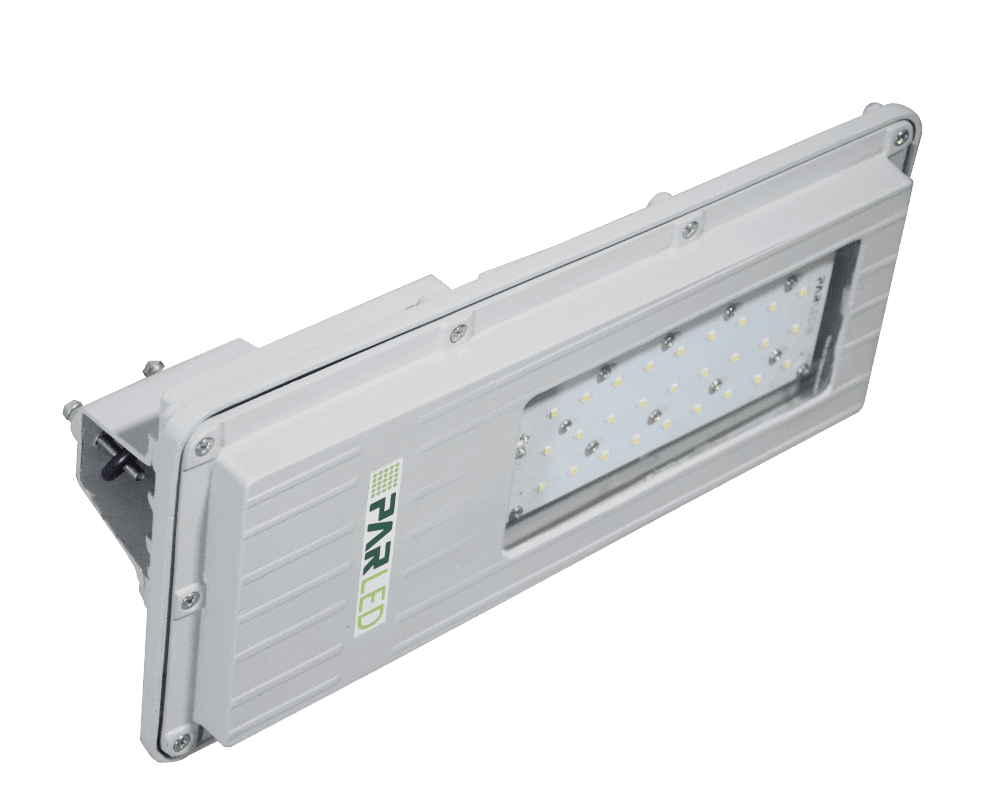

Road Nova
The aesthetically designed Road Nova is an affordable LED road lighting solution tailored for residential and minor road applications. It ensures smooth traffic flow and enhances the safety of residents, making it a reliable choice for community lighting needs.
It’s cast aluminium housing provides excellent thermal management and strong resistance to environmental elements, ensuring along lifetime and consistent reliability. Compared to conventional lamp systems, Road Nova delivers significant energy savings, offering both performance and affordability.
Durable Design
The cast aluminium alloy housing delivers superior durability and thermal efficiency, with proven resistance to vibration, dust, and heat for reliable operation in tough environments.
Energy Efficient
Advanced LEDs provide bright illumination with reduced energy usage.
Long Life
Optimized thermal management ensures extended service life and fewer replacements.
Low Maintenance
Rugged construction and high-quality components reduce servicing requirements, ensuring dependable performance and lower operational costs.
Safe Keeping
Equipped with an advanced electronic driver and multi-level protection features, Road Glow delivers unmatched safety, reliability, and long-lasting durability.
Enhanced Safety
Built-in 10kV/5kA surge protection device.
Luminaire Construction
| Hosing Material | Hosing Finished | Optical Cover Material | Mounting Bracket |
| Cast Aluminum Alloy (LM-6 Grade) | Powder Coated | Toughened Glass | Suitable for Pole Arm OD 33mm Maximum. |
Optoelectronics
| Light Source | Color Rendering Index (CRI) | Correlated Color Temperature | Luminous Efficacy | Beam Angle of Light Source | Median Useful Life L70B50 |
| SMD Type High Power LED | >70 | 5700 k | 160 Lumens / Watt | 120° | 50,000 Hour(s) |
Electronics
| Driver | Setup Rise Holdup time for Driver | Efficiency of Driver | THD in % |
| Single Stage Fly back with PF Correction C.C. Driver | < 0.5 sec | ≥ 87% | ≤ 10% (Full Load) |
Protection
| Voltage Protection | Surge Protection | Over Heat Protection | Short Circuit Protection | Ingress Protection Code | Impact Protection Code |
| Phase to Phase protection of 440V for 8 Hrs. | 6kV - Inbuilt in Driver | Yes (Drop Output Current) | Yes (Auto recovery) | IP - 66 | IK - 05 |
Operating & Electrical
| Voltage Input | Line Frequency | Power Factor | Working Temperature |
| 130 to 280 VAC | 50 Hz | ≥ 0.95 | − 10˚C - +50˚C. |
| Product Code | Ordering Code | System Power (W) | Rated Voltage (V) | Mains Current (A) | System Lumens (Lm) |
| PLSL 508 / 20 | PLSL 508 / 18 / 150 | 20 W | 230 VAC | 0.09 A | 2500 |
| PLSL 508 / 35 | PLSL 508 / 32 / 150 | 35 W | 230 VAC | 0.16 A | 4500 |
| PLSL 508 / 40 | PLSL 508 / 36 / 150 | 40 W | 230 VAC | 0.18 A | 5000 |
