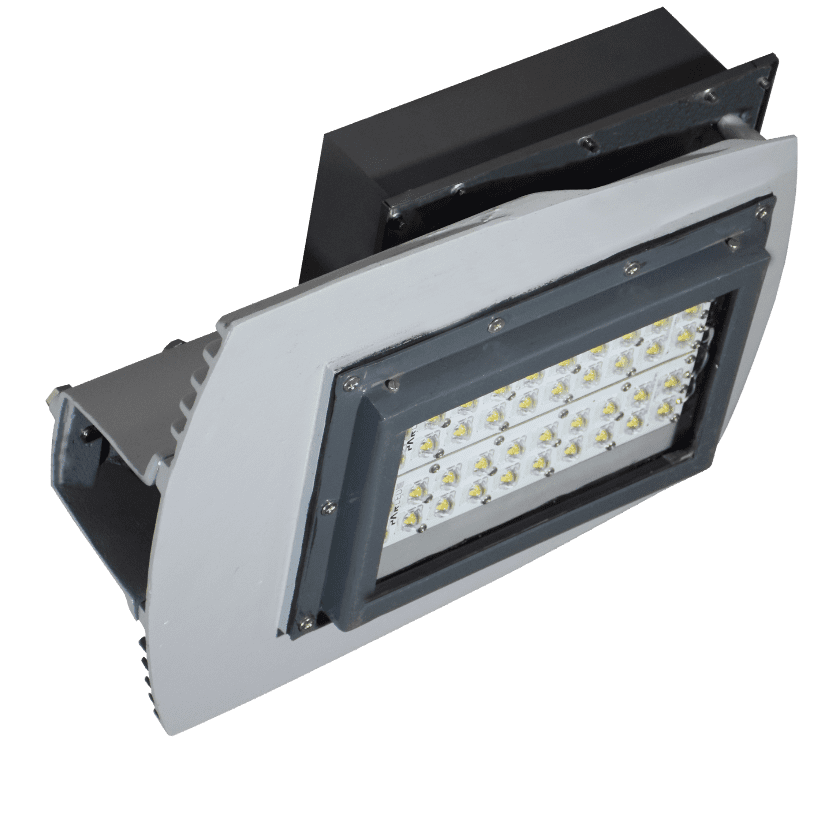

Road Star
Road Star is engineered to empower cities and organizations to meet their energy conservation goals while ensuring safer, well-lit roads. It delivers uniform illumination and supports maximum spacing between poles, reducing infrastructure costs without compromising road visibility.
The die-cast aluminium housing ensures robust durability, superior heat dissipation, and a long operational life of over 50,000 hours, minimizing maintenance and maximizing performance.
With advanced LED technology, Road Star offers significant energy savings compared to conventional lamp systems, making it a cost-effective and sustainable solution for both minor and major road applications.
Robust & Reliable Design
Engineered with precision, its cast aluminium alloy housing guarantees long-lasting durability and optimal heat management, while offering strong resistance against vibration, dust, and extreme temperatures.
Superior Heat Dissipation
“Zero Air Gap” between MCPCB and aluminium modules ensures faster thermal transfer.
High Efficiency
Designed for sustainability, Road Star integrates advanced, long-life LEDs that achieve 175 lm/W, combining exceptional brightness with energy savings of up to 65%.
Long Life
Advanced thermal design maximizes LED lifespan, guaranteeing consistent illumination and sustainable performance over time.
Uniform Light Distribution
Engineered optics provide consistent and glare-free illumination, enhancing visibility, safety, and aesthetics in residential, commercial, and public spaces.
Minimal Maintenance
A pre-wired, separate driver compartment with easy access simplifies servicing, ensuring long service life and reduced total cost of ownership.
Safe Keeping
A high-performance electronic driver with integrated high-voltage, surge, and OC/SC/OT protections ensures reliable operation and enhanced luminaire safety.
Enhanced Safety
Built-in 10kV/5kA surge protection device.
Luminaire Construction
| Hosing Material | Hosing Finished | Optical Cover Material | Mounting Bracket |
| Cast Aluminum Alloy (LM-6 Grade) | Powder Coated | Toughened Glass | Suitable for Pole Arm OD 60mm Maximum. |
Optoelectronics
| Light Source | Color Rendering Index (CRI) | Correlated Color Temperature | Luminous Efficacy | Beam Angle of Light source | Median Useful life L70B50 |
| SMD Type High Power LED | >70 | 5700 k | 175 Lumens / Watt | 120° | 50,000 Hour(s) |
Electronics
| Driver | Setup Rise Holdup Time for Driver | Efficiency of Driver | THD in % |
| Single Stage Fly back with PF Correction C.C. Driver | < 0.5 sec | ≥ 87% | ≤ 10% (Full Load) |
Protection
| Volatge Protection | Surge Protection | Over Heat Protection | Short Circuit Protection | Ingress protection Code | Impact Protection Code |
| Phase to Phase protection of 440V for 8 Hrs. | 6.5kV - Inbuilt in Driver | Yes (Drop Output Current) | Yes (Auto recovery) | IP - 66 | IK - 05 |
Operating & Electrical
| Voltage Input | Line Frequency | Power Factor | Working Temperature |
| 130 to 280 VAC | 50 Hz | ≥ 0.95 | − 10˚C - +50˚C. |
| Product Code | Ordering Code | System Power (W) | Rated Voltage (V) | Mains Current (A) | System Lumens (Lm) |
| PLSL 504 / 75 | PLSL 504 / 30 / 700 | 75 W | 230 VAC | 0.34 A | 9750 |
| PLSL 504 / 100 | PLSL 504 / 40 / 700 | 100 W | 230 VAC | 0.46 A | 13050 |
| PLSL 502 / 150 | PLSL 504 / 60 / 700 | 150 W | 230 VAC | 0.69 A | 19550 |
