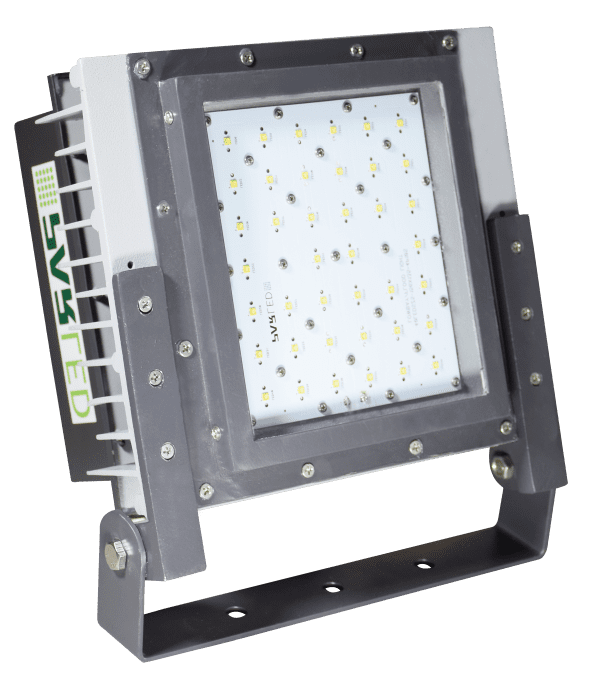

Area Shine
The new-generation, environment-friendly Area Shine*is an energy-efficient range of LED floodlights designed as a replacement for conventional lighting technologies. Its specially designed extruded aluminium heat sink combines aesthetics with superior thermal management, ensuring long lifetime, reliability, and consistent performance.
Area Shine is available in multiple lumen packages and optics, making it versatile for a wide range of area lighting applications. With uniform light distribution, it sets a new standard for modern floodlighting.
Durability & Reliability
Built with rugged materials and advanced protection features, Area Shine withstands challenging environmental conditions while delivering dependable performance throughout its lifetime.
Energy Efficiency
High-performance LEDs paired with robust drivers provide significant energy savings compared to traditional floodlights, making Area Shine an environmentally responsible choice.
Advanced Thermal Management
The specially designed extruded aluminium heat sink combines aesthetics with excellent thermal performance, ensuring optimal heat dissipation, reliability, and an extended product lifetime.
Optimised Light Distribution
Precision optics delivers glare-free, consistent illumination, ensuring superior visibility and comfort across a wide range of applications.
Easy maintenance
Driver compartment designed for top access and servicing convenience.
Protection
A high-performance electronic driver ensures reliable operation with built-in high-voltage protection, surge protection, and OC/SC/OT safeguards, providing enhanced safety and durability for the luminaire.
Enhanced Safety
Built-in 10kV/5kA surge protection device.
Luminaire Construction
| Hosing Material | Hosing Finished | Optical Cover Material | Mounting Bracket |
| Anodized Extruded Aluminum (Copper Content <0.1%) | Powder Coated | Heat Resists 4mm Thick toughened Glass | Provided 3mm thick adjustable MS cradle |
Optoelectronics
| Light Source | Color Rendering Index (CRI) | Correlated Color Temperature | Luminous Efficacy | Beam Angle of Light Source | Median Useful Life L70B50 |
| SMD Type High Power LED | >70 | 5700 k | 160 Lumens / Watt | 120° | 50,000 Hour(s) |
Electronics
| Driver | Setup Rise Holdup Time for Driver | Efficiency of Driver | THD in % |
| Single Stage Fly back with PF Correction C.C. Driver | < 0.5 sec | ≥ 87% | ≤ 10% (Full Load) |
Protection
| Voltage Protection | Surge Protection | Over Heat Protection | Short Circuit Protection | Ingress Protection Code | Impact Protection Code |
| Phase to Phase protection of 440V for 8 Hrs. | 6.5kV - Inbuilt in Driver | Yes (Drop Output Current) | Yes (Auto recovery) | IP - 66 | IK - 05 |
Operating & Electrical
| Voltage Input | Line Frequency | Power Factor | Working Temperature |
| 130 to 280 VAC | 50 Hz | ≥ 0.95 | − 10˚C - +50˚C. |
| Product Code | Ordering Code | System Power (W) | Rated Voltage (V) | Mains Current (A) | System Lumens (Lm) |
| PLFL 511 / 100 | PLFL 511 / / 96 / 150 | 100 W | 230 VAC | 0.46 A | 13450 |
| PLFL 511 / 150 | PLFL 511 / 144 / 150 | 150 W | 230 VAC | 0.69 A | 20150 |
| PLFL 511 / 200 | PLFL 511 / 192 / 150 | 200 W | 230 VAC | 0.92 A | 26900 |
| PLFL 511 / 250 | PLFL 511 / 240 / 150 | 250 W | 230 VAC | 1.14 A | 33600 |
