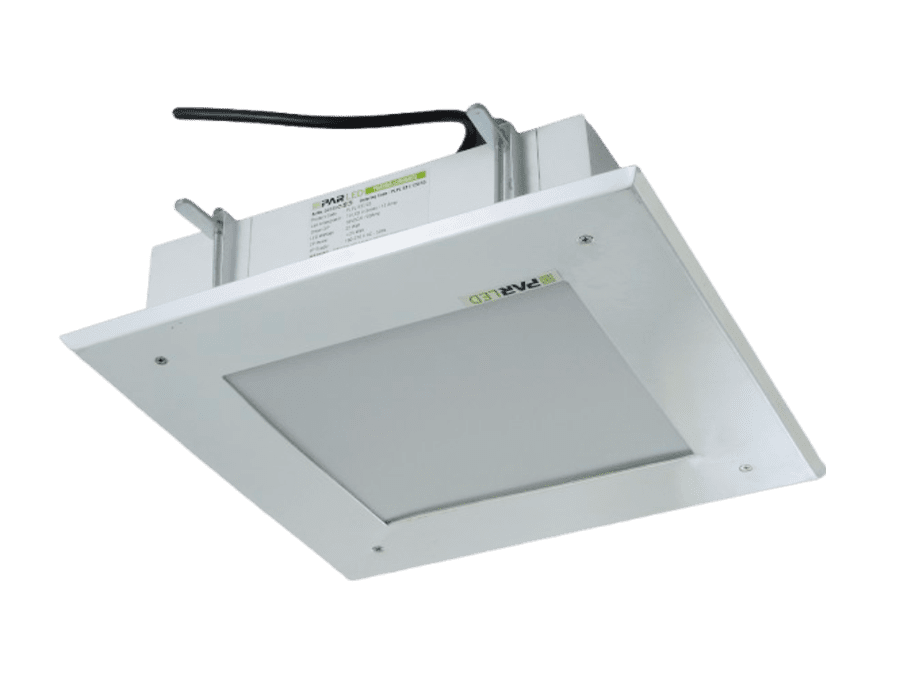

Pharma Star
The Environment-Friendly Cleanroom Luminaire sets a new benchmark in efficient, sustainable cleanroom lighting. Engineered to replace traditional PL and T5 fluorescent fittings, it delivers superior illumination at a fraction of the energy consumption. Its precision-crafted aluminum heat sink ensures exceptional thermal performance, guaranteeing long, reliable operation even in demanding controlled environments.
Designed for absolute cleanliness, it features your choice of a Satin-finish HET diffuser or frosted toughened glass, both seamlessly sealed with a non-hygroscopic VHB gasket for perfect dust protection. The result is brilliant, uniform light distribution that enhances visibility, reduces energy load, and supports eco-friendly operations—without compromising cleanroom standards.
Cleanroom Construction
Engineered with CRCA steel for contamination-controlled environments with smooth surfaces and easy-to-clean design.
Precision-Crafted Aluminum Heat Sink
Specially fabricated design ensures superior thermal management for long, reliable performance.
Dust-Proof Sealed Design
Satin-finish HET diffuser or frosted toughened glass is secured using a non-hygroscopic VHB gasket for complete dust protection.
Uniform & Glare-Free Illumination
Provides even light dispersion to improve visibility and enhance comfort in sensitive work areas.
Eco-Friendly Performance
Significantly more energy-efficient than PL-L and TL-D lamps, supporting sustainable cleanroom operations.
Long Service Life
Optimized thermal control maximizes LED lifespan, reducing maintenance cycles and operational downtime.
Easy Installation
Equipped with a height-adjustable clamp mechanism (up to 75 mm) that allows precise fixing, alignment, and quick installation, ensuring a perfect fit in various cleanroom ceiling configurations.
Safe Keeping
Equipped with an advanced electronic driver and multi-level protection features, Pharma Star delivers unmatched safety, reliability, and long-lasting durability.
Enhanced Safety
Built-in 10kV/5kA surge protection device.
Luminaire Construction
| Hosing Material | Hosing Finished | Optical Cover Material | Mounting Bracket |
| 24SWG CRCA Sheet with Aluminium heatsink | Powder Coated | Polycarbonate Diffuser / Frosted Toughened Glass | Provided with Height adjustable clamp mechanism |
Optoelectronics
| Light Source | Color Rendering Index (CRI) | Correlated Color Temperature | Luminous Efficacy | Beam Angle of Light Source | Median Useful Life L70B50 |
| SMD Type High Power LED | >70 | 6500 k | 140 Lumens / Watt | 120° | 50,000 Hour(s) |
Electronics
| Driver | Setup Rise Holdup Time for Driver | Efficiency of Driver | THD in % |
| Single Stage Fly back with PF Correction C.C. Driver | < 0.5 sec | ≥ 87% | ≤ 10% (Full Load) |
Protection
| Voltage Protection | Surge Protection | Over Heat Protection | Short Circuit Protection | Ingress Protection Code | Impact Protection Code |
| Phase to Phase protection of 440V for 8 Hrs. | 6.5kV - Inbuilt in Driver | Yes (Drop Output Current) | Yes (Auto recovery) | IP - 50 | IK - 05 |
Operating & Electrical
| Voltage Input | Line Frequency | Power Factor | Working Temperature |
| 130 to 280 VAC | 50 Hz | ≥ 0.95 | − 10˚C - +50˚C. |
| Product Code | Ordering Code | System Power (W) | Rated Voltage (V) | Mains Current (A) | System Lumens (Lm) | Cutout Size (mm) |
| PLPL 531 / 25 | PLPL 531 / 120 / 55 | 25 W | 230 VAC | 0.11 A | 2650 | 300 x 300 |
| PLPL 531 / 45 | PLPL 531 / 224 / 55 | 45 W | 230 VAC | 0.21 A | 4900 | 600 x 600 |
| PLPL 531 / 60 | PLPL 531 / 256 / 55 | 60 W | 230 VAC | 600 x 600 |
