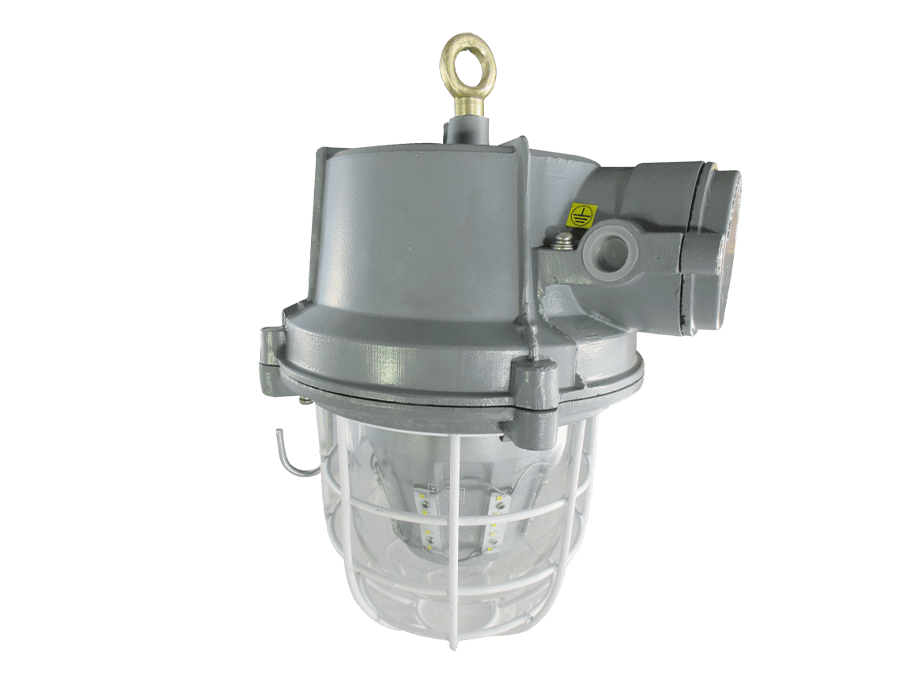

FLP Well Glass
The FLP LED Well Glass Light is engineered as a superior replacement for traditional well glass lamps—including 70W HPSV, 125W HPMV, and 160W MLL—while consuming just 35% of the power for comparable illumination. Built with a robust cast aluminium LM-6 alloy housing, it features a patented conical-shaped aluminium heat sink that delivers outstanding thermal management and uniform, wide-angle 270º illumination similar to conventional lamps.
Built for demanding and hazardous environments—oil rigs, mines, chemical plants, and petrochemical facilities—this luminaire offers enhanced reliability, improved visual comfort, and long-lasting performance. Compared to conventional HID well glass fittings, it dramatically reduces both energy usage and maintenance costs while delivering long-lasting, high-performance lighting.
Robust Housing
Manufactured with high-grade LM-6 aluminium alloy, offering superior corrosion resistance and mechanical strength for long-lasting performance in harsh industrial environments.
Patented Heat Sink
Features a uniquely designed cast aluminium conical shape heat sink that ensures exceptional thermal management, enhances LED life, and maintains consistent light output.
270° Illumination
Provides wide, even light distribution that replicates the performance of traditional well glass lamps, ensuring excellent visibility in all directions.
Energy Saving Design
Offers substantial energy savings compared to conventional HID well glass lights, lowering operational costs without compromising illumination quality.
Reliability & Comfort
Delivers stable, glare-free illumination with minimal lumen depreciation, improving visual comfort and operational safety.
Low Maintenance Cost
Long-life LED technology and durable construction minimize servicing needs, reducing downtime and long-term maintenance expenses.
Protection
A high-performance electronic driver ensures reliable operation with built-in high-voltage protection, surge protection, and OC/SC/OT safeguards, providing enhanced safety and durability for the luminaire.
Enhanced Safety
Built-in **10kV/5kA surge protection device.
Certification
This Product Certified By CIMFR (Dhanbad), PESO (Nagpur) with BIS under the Brand Logo GFEC. (Model No.: GFEC-WG-60).
Luminaire Construction
| Hosing Material | Hosing Finished | Optical Cover Material | Mounting Bracket |
| Cast Aluminum Alloy (LM-6 Grade) | Powder Coated | Heat Resists Tempered dom Glass | Provided Heavy duty forged Eye bolt |
Optoelectronics
| Light Source | Color rendering index (CRI) | Correlated Color Temperature | Luminous Efficacy | Beam angle of light source | Median useful life L70B50 |
| SMD Type High Power LED | >70 | 6500 k / 2700 k | 160 Lumens / Watt | 120° | 50,000 Hour(s) |
Electronics
| Driver | Setup rise holdup time for driver | Efficiency of Driver | THD in % |
| Single Stage Fly back with PF Correction C.C. Driver | < 0.5 sec | ≥ 87% | ≤ 10% (Full Load) |
Protection
| Voltage Protection | Surge Protection | Over Heat Protection | Short Circuit Protection | Ingress protection code | impact protection code |
| Phase to Phase protection of 440V for 8 Hrs. | 6kV - Inbuilt in Driver | Yes (Drop Output Current) | Yes (Auto recovery) | IP - 65 | IK - 05 |
Operating & Electrical
| Voltage Input | Line Frequency | Power Factor | Working Temperature |
| 130 to 280 VAC | 50 Hz | ≥ 0.95 | − 10˚C - +50˚C. |
| Product Code | Ordering Code | System Power (W) | Rated Voltage (V) | Mains Current (A) | System Lumens (Lm) |
| PLFW 539 / 35 | PLFW 539 / 48 / 100 | 35 W | 230 VAC | 0.16 A | 4400 |
| PLFW 539 / 50 | PLFW 539 / 80 / 90 | 50 W | 230 VAC | 0.23 A | 7200 |
| PLFW 539 / 60 | PLFW 539 / 80 / 110 | 60 W | 230 VAC | 0.27 A | 7600 |
