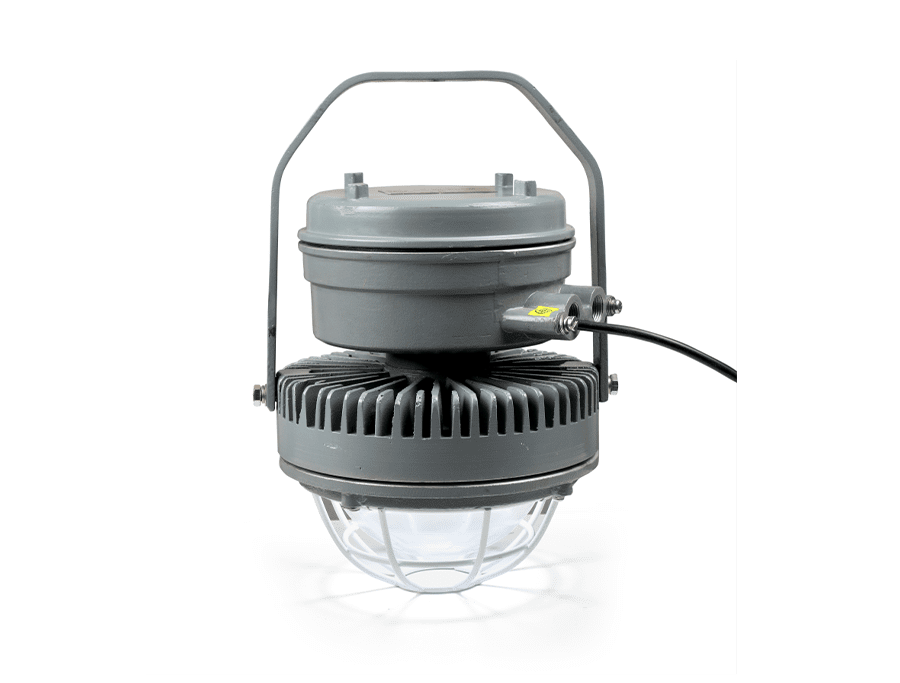

FLP Baylight
The FLP Bay Light is a high-performance industrial luminaire engineered to deliver uninterrupted, uniform illumination in areas with mounting heights above 6 meters. Designed for demanding environments, it enhances workplace safety with its advanced optical performance and comfortable light distribution—boosting productivity while reducing visual strain and errors. Its specially crafted aluminium heat sink blends modern aesthetics with exceptional thermal management, ensuring consistent light output and achieving a long service life of over 50,000 hours.
Durable Construction
Built with robust materials engineered to withstand hazardous environments, ensuring long-term durability and resistance to wear, impact, and corrosion.
Advanced Heat Sink
Features a specially designed aluminium heat sink that merges modern aesthetics with superior thermal management, ensuring stable performance in demanding conditions.
Exceptional Reliability
Designed for uninterrupted performance in high-temperature, dusty, and vibration-prone areas—ideal for demanding Hazardous industrial applications.
Extended Lifespan
Long-life LEDs and rugged construction deliver years of maintenance-free operation, reducing downtime and the cost of frequent replacements.
Energy Efficiency
High lumen efficacy ensures excellent brightness while minimizing power consumption, contributing to lower operational costs.
Lighting Performance
Offers comfortable, well-distributed illumination that enhances workplace safety, reduces errors, and boosts productivity.
Protection
A high-performance electronic driver ensures reliable operation with built-in high-voltage protection, surge protection, and OC/SC/OT safeguards, providing enhanced safety and durability for the luminaire.
Enhanced Safety
Built-in 10kV/5kA surge protection device.
Certification
This Product Certified By CIMFR (Dhanbad), PESO (Nagpur) with BIS under the Brand Logo GFEC. (Model No.: GFEC-FL-150).
Luminaire Construction
| Hosing Material | Hosing Finished | Optical Cover Material | Mounting Bracket |
| Cast Aluminum Alloy (LM-6 Grade) | Powder Coated | Heat Resists Tempered dom Glass | Provided 4mm thick adjustable MS cradle |
Optoelectronics
| Light Source | Color Rendering Index (CRI) | Correlated Color Temperature | Luminous Efficacy | Beam Angle of light Source | Median Useful Life L70B50 |
| SMD Type High Power LED | >70 | 6500 k / 2700 k | 160 Lumens / Watt | 120° | 50,000 Hour(s) |
Electronics
| Driver | Setup Rise Holdup Time for Driver | Efficiency of Driver | THD in % |
| Single Stage Fly back with PF Correction C.C. Driver | < 0.5 sec | ≥ 87% | ≤ 10% (Full Load) |
Protection
| Voltage Protection | Surge Protection | Over Heat Protection | Short Circuit Protection | Ingress Protection Code | Impact Protection Code |
| Phase to Phase protection of 440V for 8 Hrs. | 6kV - Inbuilt in Driver | Yes (Drop Output Current) | Yes (Auto recovery) | IP - 66 | IK - 05 |
Operating & Electrical
| Voltage Input | Line Frequency | Power Factor | Working Temperature |
| 130 to 280 VAC | 50 Hz | ≥ 0.95 | − 10˚C - +50˚C. |
| Product Code | Ordering Code | System Power (W) | Rated Voltage (V) | Mains Current (A) | System Lumens (Lm) |
| PLFB 538 / 100 | PLFB 538 / 96 / 150 | 100 W | 230 VAC | 0.46 A | 12600 |
| PLFB 538 / 150 | PLFB 538 / 144 / 150 | 150 W | 230 VAC | 0.69 A | 19000 |
