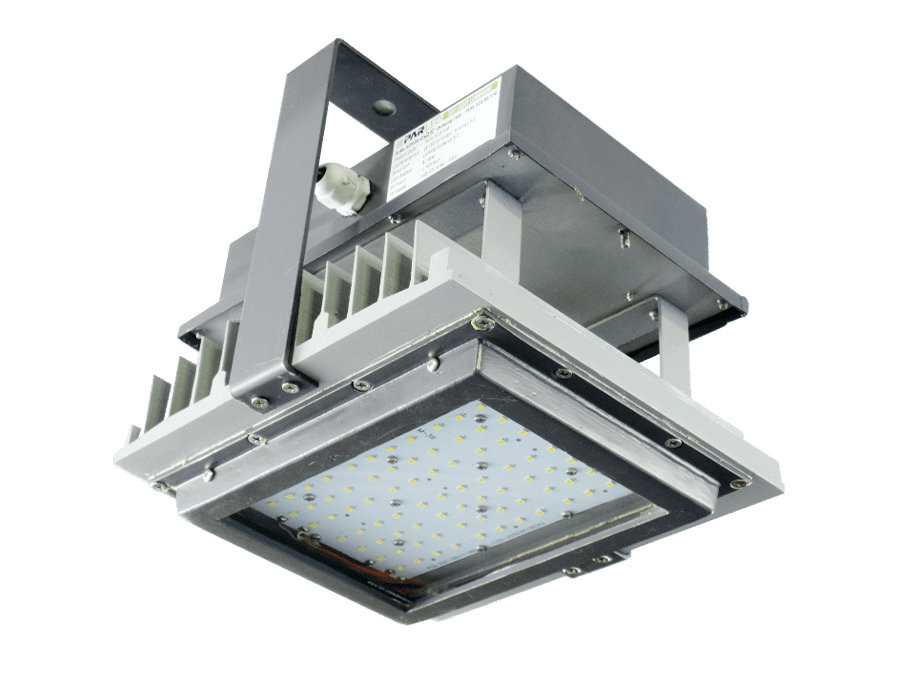

Bay Shine
Bay Shine is a high-efficiency, high- reliability LED bay-light luminaire engineered as a true point-to-point replacement for HID lighting in factories and warehouses. Its advanced extruded aluminium heat sink drives superb thermal control, keeping the luminaire cool, stable, and performing at its best even in the harshest industrial environments. Built for long-term durability and energy savings, Bay Shine reduces operating costs throughout its life cycle while enhancing workplace productivity and safety through superior, consistent illumination.
Advanced Extruded Aluminium Heatsink
Precision-engineered extruded aluminium heatsink maximizes surface area for superior heat dissipation, ensuring stable LED performance and prolonged lumen maintenance.
Industrial-Grade Durability
Built with a rugged construction designed to withstand harsh factory and warehouse conditions, delivering long- term reliability in high-temperature, dusty, and demanding environments.
Reduced Maintenance Costs
Long life LED technology, robust thermal design, and consistent performance significantly lower service frequency and minimize downtime, resulting in lower overall maintenance expenses.
High Energy Efficiency
Delivers exceptional lumen-per-watt performance, enabling substantial energy savings compared to conventional HID systems while maintaining bright, uniform illumination.
Superior Thermal Management
Optimized thermal path and airflow design maintain low operating temperatures, enhancing reliability, performance consistency, and extending the luminaire service life.
Protection
Equipped with an advanced electronic driver and multi-level protection features, delivers unmatched safety, reliability,
and long-lasting durability.
Enhanced Safety
Built-in 10kV/5kA surge protection device
Luminaire Construction
| Hosing Material | Hosing Finished | Optical Cover Material | Mounting Bracket |
| Anodized Extruded Alluminum (Copper Content <0.1%) | Powder Coated | Heat Resists 4mm Thick toughened Glass | Provided 3mm thick MS Bracket |
Optoelectronics
| Light Source | Color Rendering Index (CRI) | Correlated Color Temperature | Luminous Efficacy | Beam Angle of Light Source | Median Useful Life L70B50 |
| SMD Type High Power LED | >70 | 6500 k / 5000 k / 2700 k | 160 Lumens / Watt | 120° | 50,000 Hour(s) |
Electronics
| Driver | Setup Rise Holdup Time for Driver | Efficiency of Driver | THD in % |
| Single Stage Fly back with PF Correction C.C. Driver | < 0.5 sec | ≥ 87% | ≤ 10% (Full Load) |
Protection
| Voltage Protection | Surge Protection | Over Heat Protection | Short Circuit Protection | Ingress Protection Code | Impact Protection Code |
| Phase to Phase protection of 440V for 8 Hrs. | 6.5kV - Inbuilt in Driver | Yes (Drop Output Current) | Yes (Auto recovery) | IP - 66 | IK - 05 |
Operating & Electrical
| Voltage Input | Line Frequency | Power Factor | Working Temperature |
| 130 to 280 VAC | 50 Hz | ≥ 0.95 | − 10˚C - +50˚C. |
| Product Code | Ordering Code | System Power (W) | Rated Voltage (V) | Mains Current (A) | System Lumens (Lm) |
| PLBL 523 / 90 | PLBL 523 / 84 / 150 | 90 W | 230 VAC | 0.41 A | 11750 |
| PLBL 523 / 100 | PLBL 523 / 96 / 150 | 100 W | 230 VAC | 0.46 A | 13450 |
| PLBL 523 / 150 | PLBL 523 / 144 / 150 | 150 W | 230 VAC | 0.69 A | 20150 |
| PLBL 523 / 200 | PLBL 523 / 192 / 150 | 200 W | 230 VAC | 0.92 A | 26900 |
| PLBL 523 / 250 | PLBL 523 / 240 / 150 | 250 W | 230 VAC | 1.14 A | 33600 |
