Bay Nova

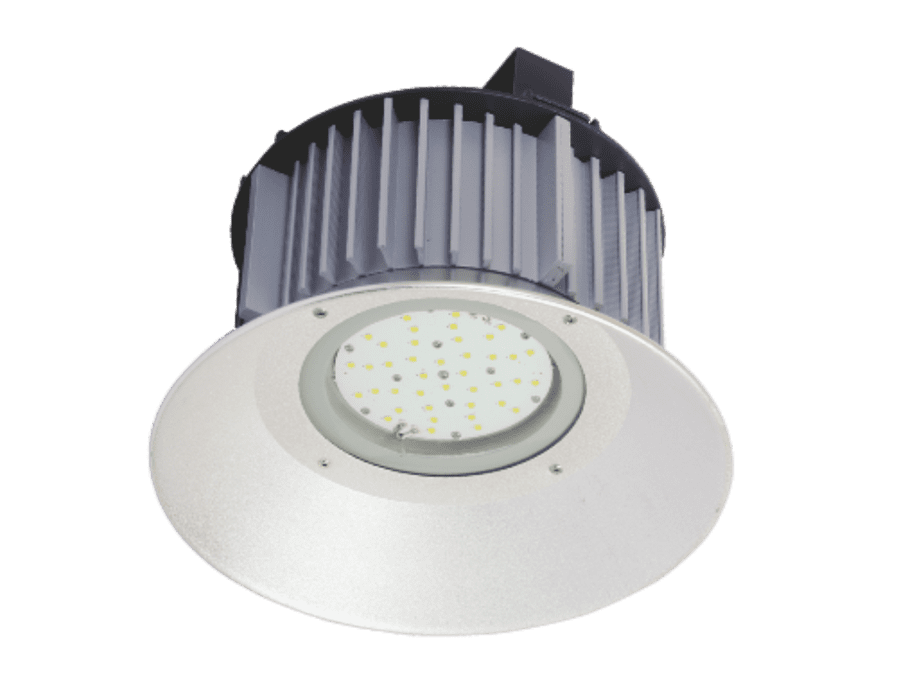

Bay Nova LED High Bay lighting is engineered to deliver wide, uniform illumination across large industrial facilities. Its high-efficiency LEDs work in combination with a high-purity anodized aluminium reflector featuring an electrochemically anodized matte finish, ensuring smooth, evenly distributed light with minimal glare.
Designed for long-lasting performance, Bay Nova uses an advanced extruded aluminium heat sink that keeps the system running cool and reliable. Its unique vertical fin design naturally prevents dust buildup, ensuring consistent light output and minimal maintenance over time.
With Bay Nova, you get smarter, stronger, and more efficient lighting that transforms productivity and enhances every corner of your workspace.
Precision Design
Crafted with a robust extruded alluminium body that combines strength, sleek aesthetics, and long-lasting durability for demanding industrial environments.
Superior Heat Dissipation
Advanced vertical-fin heat sink design maximizes airflow and thermal efficiency, keeping the luminaire cool for stable performance and extended LED life.
More Life Efficiency
Engineered with high-efficacy LEDs and optimized thermal management to deliver maximum lumen output with minimal energy consumption throughout its lifespan.
Low-Maintenance Operation
Dust-resistant housing and efficient thermal control reduce service needs, ensuring reliable performance with minimal downtime and lower long-term maintenance costs.
Uniform Illumination
High-purity anodized reflector and precision LED optics provide wide, balanced, and glare-free lighting that enhances visibility and boosts productivity across large spaces.
Protection
High-performance electronic driver with 440V phase-to-phase protection for 8 hours, surge, and OC/SC/OT protections ensures reliable operation and enhanced luminaire safety.
Enhanced Safety
Built-in 10kV/5kA surge protection device
Luminaire Construction
| Hosing Material | Hosing Finished | Optical Cover Material | Mounting Bracket |
| Anodized Extruded Aluminum (Copper Content <0.1%) | Powder Coated | Heat Resists 4mm Thick toughened Glass | Provided 3mm thick MS Bracket |
Optoelectronics
| Light Source | Color Rendering Index (CRI) | Correlated Color Temperature | Luminous Efficacy | Beam Angle of Light Source | Median Useful Life L70B50 |
| SMD Type High Power LED | >70 | 6500 k / 5000 k / 2700 k | 175 Lumens / Watt | 120° | 50,000 Hour(s) |
Electronics
| Driver | Setup Rise Holdup Time for Driver | Efficiency of Driver | THD in % |
| Single Stage Fly back with PF Correction C.C. Driver | < 0.5 sec | ≥ 87% | ≤ 10% (Full Load) |
Protection
| Voltage Protection | Surge Protection | Over Heat Protection | Short Circuit Protection | Ingress Protection Code | Impact Protection Code |
| Phase to Phase protection of 440V for 8 Hrs. | 6.5kV - Inbuilt in Driver | Yes (Drop Output Current) | Yes (Auto recovery) | IP - 66 | IK - 05 |
Operating & Electrical
| Voltage Input | Line Frequency | Power Factor | Working Temperature |
| 130 to 280 VAC | 50 Hz | ≥ 0.95 | − 10˚C - +50˚C. |
| Product Code | Ordering Code | System Power (W) | Rated Voltage (V) | Mains Current (A) | System Lumens (Lm) |
| PLBL 525 / 100 | PLBL 525 / 40 / 700 | 100 W | 230 VAC | 0.46 A | 13050 |
| PLBL 525 / 150 | PLBL 525 / 60 / 700 | 150 W | 230 VAC | 0.69 A | 19550 |
