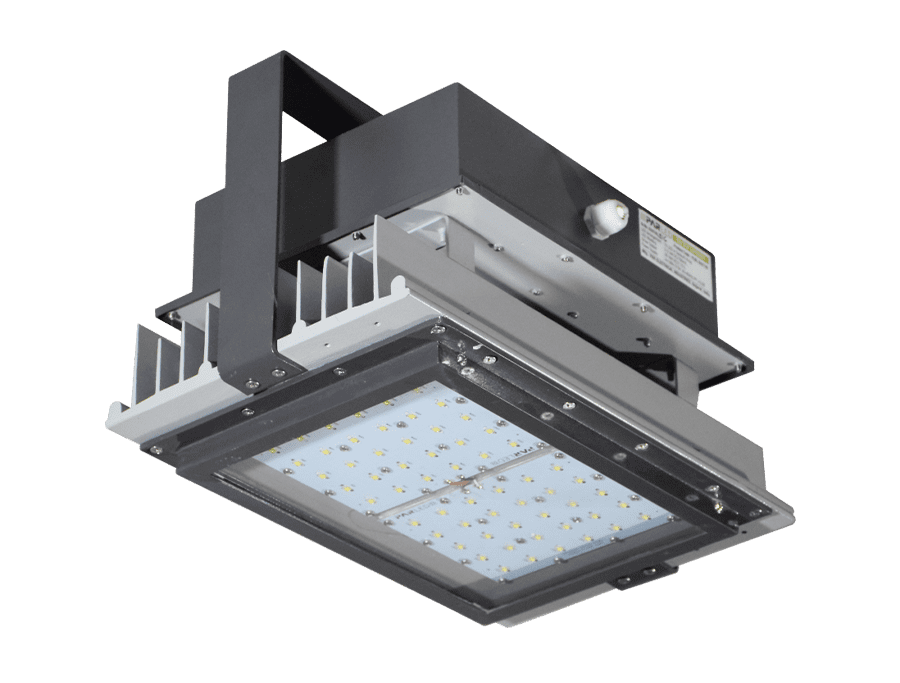

Bay Star
Bay Star sets a new benchmark in industrial lighting, delivering powerful, uninterrupted illumination engineered for high-mount installations, hot environments, and the toughest heavy-duty applications. Its crisp, comfortable light elevates visibility, boosts worker focus, and helps reduce errors—creating a safer, more productive workspace from the moment it switches on.
At its core is a precision-crafted extruded aluminium heat sink that blends premium aesthetics with exceptional thermal performance. This advanced design keeps the luminaire running cool, stable, and consistently bright, achieving a long-lasting lifespan of over 50,000 hours. Bay Star isn’t just a light—it’s a performance upgrade for every industrial environment it powers.
Precision Design
Engineered with a robust, premium-grade extruded alluminium body that enhances durability, adds a refined industrial aesthetic, and supports optimal performance in demanding environments.
Advanced Thermal Management
The aerodynamically designed heat sink maximizes airflow and heat dissipation, ensuring cooler operation, stable performance, and protection of critical LED components.
High Lumen Efficiency
Equipped with high-efficacy LEDs and optimized optical design to deliver powerful, uniform illumination while maximizing energy savings and reducing operational costs.
Long Operational Life
Built to last with a system lifespan exceeding 50,000 hours, ensuring reliable lighting over years of continuous industrial use.
Maintenance-Free Performance
Rugged construction and efficient thermal control minimize component stress, reducing the need for maintenance and eliminating frequent service interruptions.
Superior Light Illumination
Delivers crisp, balanced, and uniform light distribution that enhances visibility, boosts worker productivity, and reduces errors across large industrial spaces.
Protection
High-performance electronic driver with 440V phase-to-phase protection for 8 hours, surge, and OC/SC/OT protections ensures reliable operation and enhanced luminaire safety.
Enhanced Safety
Built-in 10kV/5kA surge protection device.
Luminaire Construction
| Hosing Material | Hosing Finished | Optical Cover Material | Mounting Bracket |
| Anodized Extruded Alluminum (Copper Content <0.1%) | Powder Coated | Heat Resists 4mm Thick toughened Glass | Provided 3mm thick MS Bracket |
Optoelectronics
| Light Source | Color Rendering Index (CRI) | Correlated Color Temperature | Luminous Efficacy | Beam Angle of Light Source | Median Useful Life L70B50 |
| SMD Type High Power LED | >70 | 6500 k / 5000 k / 2700 k | 175 Lumens / Watt | 120° | 50,000 Hour(s) |
Electronics
| Driver | Setup Rise Holdup Time for Driver | Efficiency of Driver | THD in % |
| Single Stage Fly back with PF Correction C.C. Driver | < 0.5 sec | ≥ 87% | ≤ 10% (Full Load) |
Protection
| Voltage Protection | Surge Protection | Over Heat Protection | Short Circuit Protection | Ingress Protection Code | Impact Protection Code |
| Phase to Phase protection of 440V for 8 Hrs. | 6.5kV - Inbuilt in Driver | Yes (Drop Output Current) | Yes (Auto recovery) | IP - 66 | IK - 05 |
Operating & Electrical
| Voltage Input | Line Frequency | Power Factor | Working Temperature |
| 130 to 280 VAC | 50 Hz | ≥ 0.95 | − 10˚C - +50˚C. |
| Product Code | Ordering Code | System Power (W) | Rated Voltage (V) | Mains Current (A) | System Lumens (Lm) |
| PLBL 524 / 75 | PLBL 524 / 30 / 700 | 75 W | 230 VAC | 0.34 A | 9750 |
| PLBL 524 / 100 | PLBL 524 / 40 / 700 | 100 W | 230 VAC | 0.46 A | 13050 |
| PLBL 524 / 150 | PLBL 524 / 60 / 700 | 150 W | 230 VAC | 0.69 A | 19550 |
| PLBL 524 / 200 | PLBL 524 / 80 / 700 | 200 W | 230 VAC | 0.92 A | 26100 |
| PLBL 524 / 300 | PLBL 524 / 120 / 700 | 300 W | 230 VAC | 1.37 A | 39100 |
