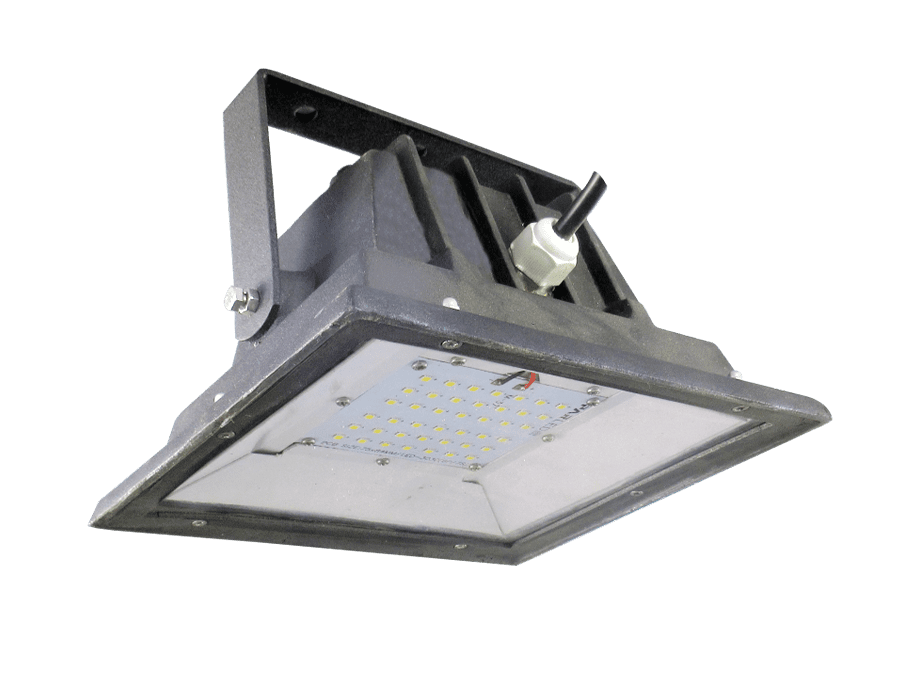

Bay Eco
Bay Eco is the perfect lowbay lighting solution for small industries and workshops with mounting heights under 5 meters. Engineered for high performance, it delivers crisp, uniform illumination that elevates visibility and enhances workplace safety. Packed with the full advantages of LED technology—dramatically reduced energy consumption, extended service life, and virtually zero maintenance—Bay Eco brings premium lighting performance to compact industrial spaces at an exceptional value.
Compact Housing
Crafted with a compact, light weight housing that fits effortlessly into tight spaces, making installation simple while delivering powerful, efficient illumination.
Optimized for Low Mounting Heights
Purpose-built for installations below 5 meters, ensuring maximum brightness and uniformity in compact industrial spaces.
High-Quality Illumination
Delivers smooth, glare-free light distribution that enhances visibility and supports safer, more productive work environments.
Energy Efficiency
Advanced LED technology significantly reduces power consumption, lowering operational costs without sacrificing performance.
Long Service Life
Designed with high-quality components that ensure reliable, long-term operation, minimizing downtime and replacements.
Ideal for Small Industries & Workshops
Engineered to perform in demanding yet compact spaces, making it a perfect fit for small manufacturing units, assembly areas, and workshop lighting.
Safe Keeping
Equipped with an advanced electronic driver and multi-level protection features, Bay Eco delivers unmatched safety, reliability, and long-lasting durability.
Enhanced Safety
Built-in 10kV/5kA surge protection device.
Luminaire Construction
| Hosing Material | Hosing Finished | Optical Cover Material | Mounting Bracket |
| Cast Aluminum Alloy (LM-6 Grade) | Powder Coated | Polycarbonate Cover | Provided 2mm thick MS Bracket |
Optoelectronics
| Light Source | Color Rendering Index (CRI) | Correlated Color Temperature | Luminous Efficacy | Beam Angle of Light Source | Median Useful Life L70B50 |
| SMD Type High Power LED | >70 | 6500 k / 5000 k / 2700 k | 160 Lumens / Watt | 120° | 50,000 Hour(s) |
Electronics
| Driver | Setup Rise Holdup Time for Driver | Efficiency of Driver | THD in % |
| Single Stage Fly back with PF Correction C.C. Driver | < 0.5 sec | ≥ 87% | ≤ 10% (Full Load) |
Protection
| Voltage Protection | Surge Protection | Over Heat Protection | Short Circuit Protection | Ingress Protection Code | Impact Protection Code |
| Phase to Phase protection of 440V for 8 Hrs. | 6kV - Inbuilt in Driver | Yes (Drop Output Current) | Yes (Auto recovery) | IP - 54 | IK - 05 |
Operating & Electrical
| Voltage Input | Line Frequency | Power Factor | Working Temperature |
| 130 to 280 VAC | 50 Hz | ≥ 0.95 | − 10˚C - +50˚C. |
| Product Code | Ordering Code | System Power (W) | Rated Voltage (V) | Mains Current (A) | System Lumens (Lm) |
| PLBL 522 / 45 | PLBL 522 / 42 / 150 | 45 W | 230 VAC | 0.20 A | 4900 |
