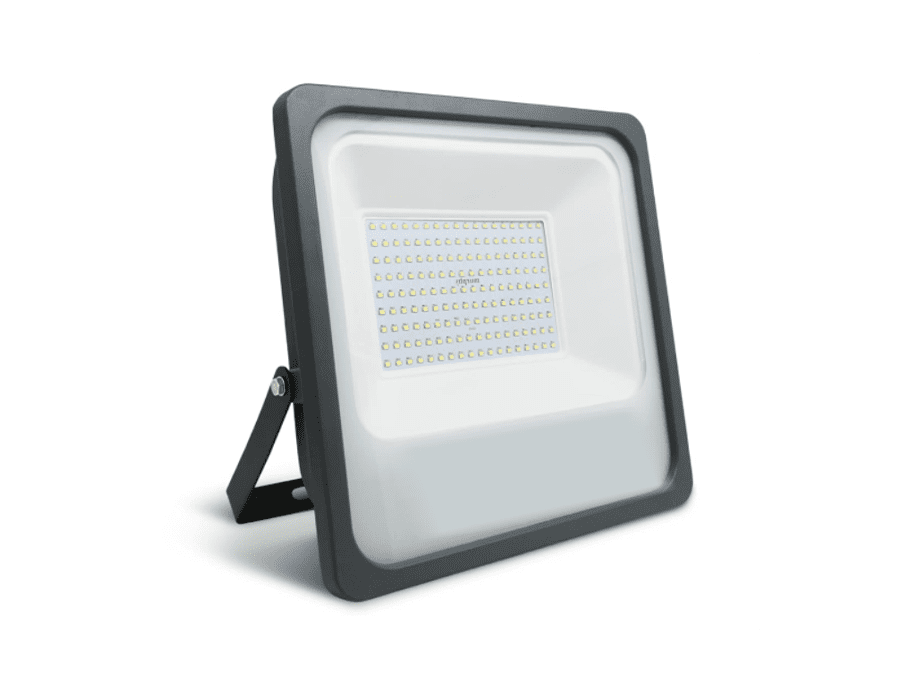

Area Glow
The Area Glow Flood Light is a high-efficiency LED luminaire designed for versatile area lighting applications. It offers a superior alternative to conventional halogen and metal halide floodlights, providing significant energy savings and enhanced lighting performance.
Its specially engineered heat sink that combines modern aesthetics with superior thermal management, ensuring excellent heat dissipation and long-term resistance to environmental elements, With high lumen output, uniform light distribution, and extended operational life, the Area Glow Flood Light delivers outstanding performance and durability — setting a new standard in professional area lighting.
Integrated Design
Incorporates the LED module, precision optical system, driver, and high-efficiency heat sink into a single compact housing, simplifying installation, enhancing system integrity, and ensuring reliable long-term operation.
High Lumen Efficacy
Optimized LED module ensures maximum brightness with reduced power consumption.
Durable & Reliable
With a rugged housing, resistance to vibration, dust, and heat, and built-in driver protection, Area Spark ensures dependable performance even in harsh operating environments.
Versatile Application
Available in multiple lumen packages and equipped with uniform light distribution, Area Glow ensures optimized illumination for industrial sites, sports arenas, parking lots, warehouses, and general outdoor spaces.
Cost Effective
Delivers optimal illumination performance at a competitive total cost of ownership.
Safe Keeping
Equipped with an advanced electronic driver and multi-level protection features, Area Spark delivers unmatched safety, reliability, and long-lasting durability.
Enhanced Safety
Built-in 10kV/5kA surge protection device.
Luminaire Construction
| Hosing Material | Hosing Finished | Optical Cover Material | Mounting Bracket |
| Cast Aluminum Alloy (LM-6 Grade) | Powder Coated | Heat Resists 4mm Thick toughened Glass | Provided 3mm thick adjustable MS cradle |
Optoelectronics
| Light Source | Color Rendering Index (CRI) | Correlated Color Temperature | Luminous Efficacy | Beam Angle of Light Source | Median Useful Life L70B50 |
| SMD Type High Power LED | >70 | 5700 k | 135 Lumens / Watt | 120° | 50,000 Hour(s) |
Electronics
| Driver | Setup Rise Holdup Time for Driver | Efficiency of Driver | THD in % |
| Single Stage Fly back with PF Correction C.C. Driver | < 0.5 sec | ≥ 87% | ≤ 10% (Full Load) |
Protection
| Voltage Protection | Surge Protection | Over Heat Protection | Short Circuit Protection | Ingress Protection Code | Impact Protection Code |
| Phase to Phase protection of 440V for 8 Hrs. | 4kV - Inbuilt in Driver | Yes (Drop Output Current) | Yes (Auto recovery) | IP - 65 | IK - 05 |
Operating & Electrical
| Voltage Input | Line Frequency | Power Factor | Working Temperature |
| 130 to 280 VAC | 50 Hz | ≥ 0.95 | − 10˚C - +50˚C. |
| Product Code | Ordering Code | System Power (W) | Rated Voltage (V) | Mains Current (A) | System Lumens (Lm) |
| PLFL 518 / 36 | PLFL 518 / 36 / 150 | 36 W | 230 VAC | 0.16 A | 4050 |
| PLFL 518 / 50 | PLFL 518 / 60 / 125 | 50 W | 230 VAC | 0.23 A | 5600 |
| PLFL 518 / 72 | PLFL 518 / 90 / 125 | 72 W | 230 VAC | 0.33 A | 8350 |
| PLFL 518 / 100 | PLFL 518 / 120 / 125 | 100 W | 250 VAC | 0.46 A | 11150 |
| PLFL 518 / 120 | PLFL 518 / 144 / 125 | 120 W | 230 VAC | 0.55 A | 13400 |
| PLFL 518 / 150 | PLFL 518 / 180 / 125 | 150 W | 230 VAC | 0.69 A | 16750 |
| PLFL 518 / 200 | PLFL 518 / 240 / 125 | 200 W | 230 VAC | 0.92 A | 22300 |
| Product Catalogue | |
| Product Data Sheet – PLFL 518 / 36 | DOWNLOAD |
| Product Data Sheet – PLFL 518 / 50 | DOWNLOAD |
| Product Data Sheet – PLFL 518 / 72 | DOWNLOAD |
| Product Data Sheet – PLFL 518 / 100 | DOWNLOAD |
| Product Data Sheet – PLFL 518 / 120 | DOWNLOAD |
| Product Data Sheet – PLFL 518 / 150 | DOWNLOAD |
| Product Data Sheet – PLFL 518 / 200 | DOWNLOAD |
