Area Eco

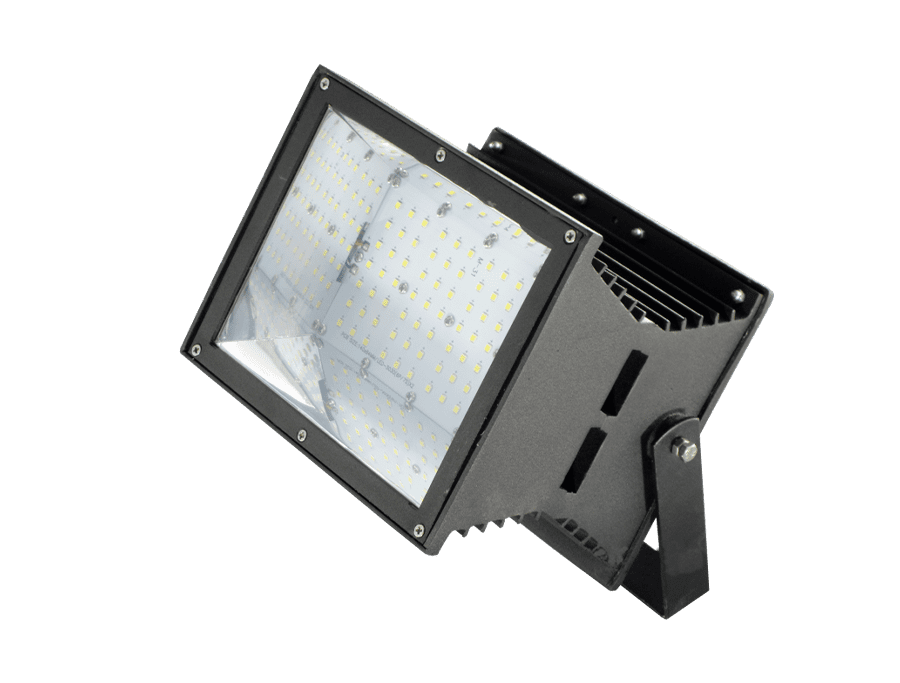

The Area Eco Flood Light is an energy-efficient lighting solution designed to replace conventional halogen floodlighting luminaires. Engineered with a high-performance heat sink, it offers superior thermal management for enhanced reliability, extended service life, and consistent performance. The luminaire combines robust construction with optimized optics, delivering excellent illumination quality at a competitive cost.
Robust Design
Robust extruded aluminium housing with a corrosion-resistant powder coating ensures structural strength, impact resistance, and long-term outdoor performance.
Lumen Efficiency
High-output LEDs provide superior lumen efficacy, delivering bright and uniform illumination with reduced energy consumption.
Thermal Management
Advanced heat sink design enables efficient heat dissipation, maintaining optimal LED junction temperature for longer system life and stable performance.
Affordable Solution
Designed for cost efficiency without compromising quality — offering excellent value both commercial and industrial applications.
Low Maintenance
Long-life LEDs and durable components minimize maintenance requirements, reducing downtime and operational costs.
Focused Beam Distribution
Precision-engineered design provides controlled and focused beam distribution for targeted lighting and minimal glare.
Safe Keeping
A high-performance electronic driver with integrated high-voltage, surge, and OC/SC/OT protections ensures reliable operation and enhanced luminaire safety.
Luminaire Construction
| Hosing Material | Hosing Finished | Optical Cover Material | Mounting Bracket |
| Anodized Extruded Aluminum (Copper Content <0.1%) | Powder Coated | Polycarbonate | Provided 2mm thick adjustable MS cradle. |
Optoelectronics
| Light Source | Color Rendering Index (CRI) | Correlated Color Temperature | Luminous Efficacy | Beam Angle of Light Source | Median Useful Life L70B50 |
| SMD Type High Power LED | >70 | 5700 k | 160 Lumens / Watt | 120° | 50,000 Hour(s) |
Electronics
| Driver | Setup Rise Holdup Time for Driver | Efficiency of Driver | THD in % |
| Single Stage Fly back with PF Correction C.C. Driver | < 0.5 sec | ≥ 87% | ≤ 10% (Full Load) |
Protection
| Voltage Protection | Surge Protection | Over Heat Protection | Short Circuit Protection | Ingress Protection Code | Impact Protection Code |
| Phase to Phase protection of 440V for 8 Hrs. | 6kV - Inbuilt in Driver | Yes (Drop Output Current) | Yes (Auto recovery) | IP - 54 | IK - 05 |
Operating & Electrical
| Voltage Input | Line Frequency | Power Factor | Working Temperature |
| 130 to 280 VAC | 50 Hz | ≥ 0.95 | − 10˚C - +50˚C. |
| Product Code | Ordering Code | System Power (W) | Rated Voltage (V) | Mains Current (A) | System Lumens (Lm) |
| PLFL 515 / 90 | PLFL 515 / 84 / 150 | 90 W | 230 VAC | 0.41 A | 11750 |
| Product Catalogue | |
| Product Data Sheet – PLFL 515 / 90 | DOWNLOAD |
