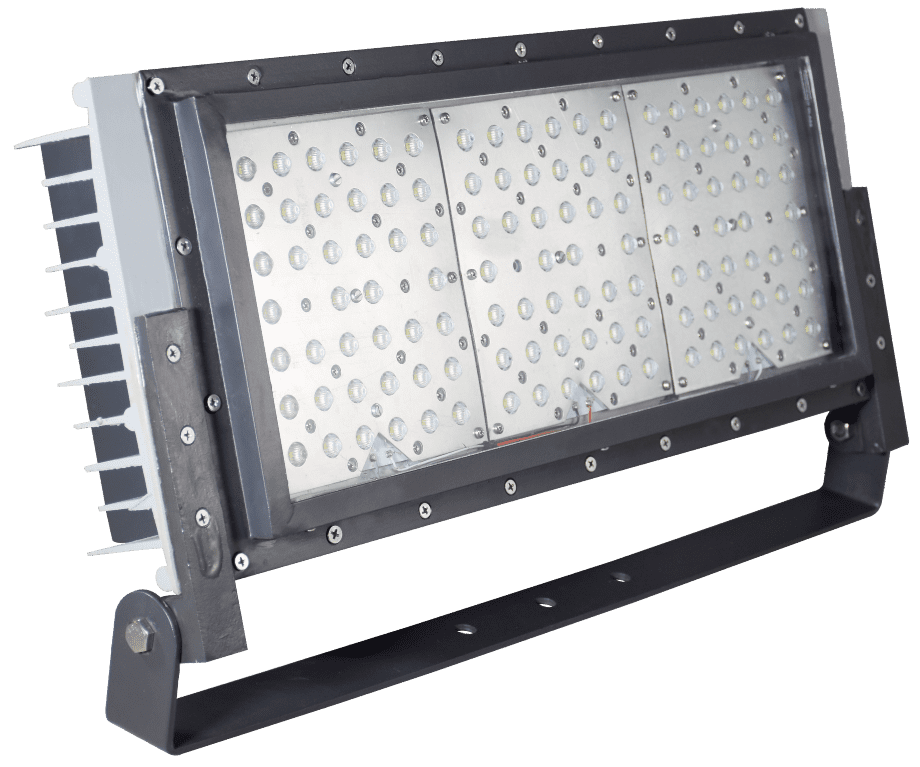

Area Star
Area Star is designed to help communities and organizations achieve their energy conservation goals while delivering reliable, high-performance area lighting.
Its specially engineered extruded aluminium heat sink combines modern aesthetics with excellent thermal management, ensuring durability, consistent performance, and a long lifespan of over 50,000 hours. This reduces maintenance needs and maximizes operational efficiency.
As a versatile range of LED floodlights, Area Star allows you to select the exact lumen package required for your application. Combined with a wide choice of optics, it provides maximum coverage, outstanding lux levels, and significant energy savings compared to conventional lighting systems.
Durable Design
Built with robust extruded aluminium housing, Area Star offers both aesthetic appeal and strength. Its excellent heat dissipation capabilities and resistance to environmental stressors guarantee reliability in harsh operating conditions.
Energy Efficiency
Equipped with high-performance LEDs, Area Star delivers excellent lumen output with lower power consumption. It provides substantial energy savings, helping organizations meet their sustainability and cost-reduction goals.
Long Life
Its specially designed extruded aluminium heat sink ensures superior thermal management, allowing the luminaire to achieve a lifetime of over 50,000 hours. This reduces replacement frequency and ensures reliable long-term operation.
Versatile Optics
A wide range of optical distributions is available to suit diverse lighting needs. This flexibility ensures maximum application coverage, enhanced uniformity, and outstanding lux levels, even across large and complex areas.
Low Maintenance
Its long service life, durable construction, and reliable driver protection, Area Star requires minimal maintenance, reducing both downtime and operational costs.
Protection
High-performance electronic driver with 440V phase-to-phase protection for 8 hours, surge, and OC/SC/OT protections ensures reliable operation and enhanced luminaire safety.
Enhanced Safety
Built-in 10kV/5kA surge protection device.
Luminaire Construction
| Hosing Material | Hosing Finished | Optical Cover Material | Mounting Bracket |
| Anodized Extruded Aluminum (Copper Content <0.1%) | Powder Coated | Heat Resists 4mm Thick toughened Glass | Provided 3mm thick adjustable MS cradle |
Optoelectronics
| Light Source | Color Rendering Index (CRI) | Correlated Color Temperature | Luminous Efficacy | Beam Angle of Light Source | Median Useful Life L70B50 |
| SMD Type High Power LED | >70 | 5700 k | 175 Lumens / Watt | 120° | 50,000 Hour(s) |
Electronics
| Driver | Setup Rise Holdup Time for Driver | Efficiency of Driver | THD in % |
| Single Stage Fly back with PF Correction C.C. Driver | < 0.5 sec | ≥ 87% | ≤ 10% (Full Load) |
Protection
| Voltage Protection | Surge Protection | Over Heat Protection | Short Circuit Protection | Ingress protection code | Impact Protection Code |
| Phase to Phase protection of 440V for 8 Hrs. | 6.5kV - Inbuilt in Driver | Yes (Drop Output Current) | Yes (Auto recovery) | IP - 66 | IK - 05 |
Operating & Electrical
| Voltage Input | Line Frequency | Power Factor | Working Temperature |
| 130 to 280 VAC | 50 Hz | ≥ 0.95 | − 10˚C - +50˚C. |
| Product Code | Ordering Code | System Power (W) | Rated Voltage (V) | Mains Current (A) | System Lumens (Lm) |
| PLFL 512 / 100 | PLFL 512 / 40 / 700 | 100 W | 230 VAC | 0.46 A | 13050 |
| PLFL 512 / 150 | PLFL 512 / 60 / 700 | 150 W | 230 VAC | 0.69 A | 19550 |
| PLFL 512 / 200 | PLFL 512 / 80 / 700 | 200 W | 230 VAC | 0.92 A | 26100 |
| PLFL 512 / 300 | PLFL 512 / 120 / 700 | 300 W | 230 VAC | 1.37 A | 39100 |
