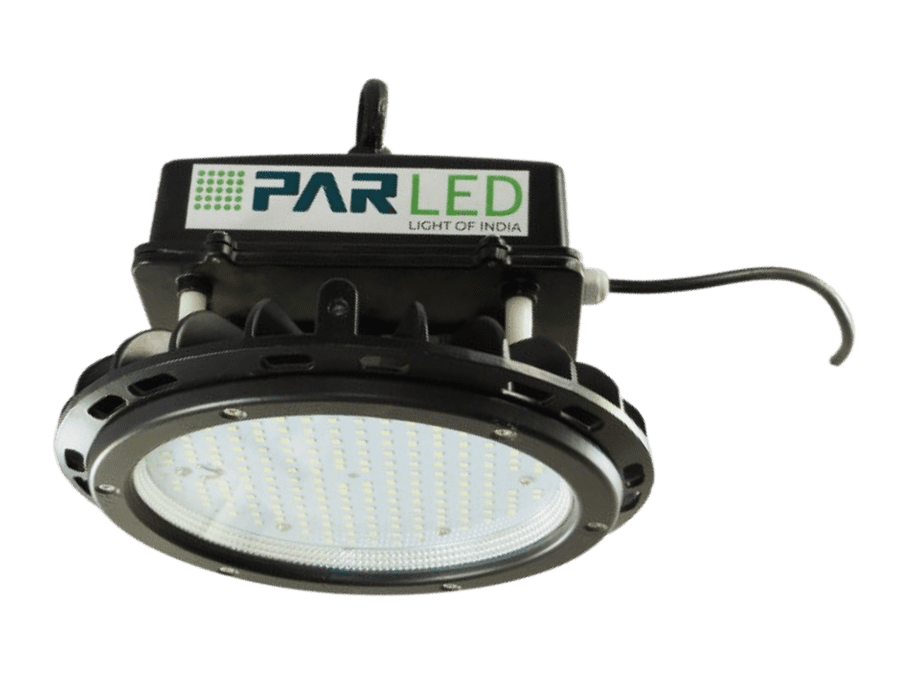

Bay Glow
Bay Glow is an energy-efficient LED bay light designed to deliver exceptional performance in industrial environments. Engineered with a sleek, precision-crafted heat sink, it blends modern aesthetics with exceptional thermal management, ensuring stable, long-lasting operation. Delivering a best-in-class 135 lm/W system efficacy, Bay Glow provides bright, accurate, and consistent illumination—perfect for applications where precision and productivity are non-negotiable.
Robust Construction
Built with a sleek, high-strength aluminium body that combines modern aesthetics with industrial-grade durability for long-lasting performance.
High Lumen Efficacy
Delivers exceptional system efficacy of 105 lm/W, ensuring brighter illumination with lower energy consumption for maximum efficiency.
Long Operational Life
Advanced thermal engineering and high-quality components enable an extended service life, providing years of reliable illumination.
Maintenance-Free Performance
Dust-resistant design, superior heat management, and durable construction minimize service needs, offering a virtually maintenance-free lighting solution.
Cost Effective
Delivers optimal illumination performance at a competitive total cost of ownership.
Safe Keeping
Equipped with an advanced electronic driver and multi-level protection features, Bay glow delivers unmatched safety, reliability, and long-lasting durability.
Enhanced Safety
Built-in 10kV/5kA surge protection device.
Luminaire Construction
| Hosing Material | Hosing Finished | Optical Cover Material | Mounting Bracket |
| Cast Aluminum Alloy (LM-6 Grade) | Powder Coated | Heat Resists 4mm Thick toughened Glass | Provided 3mm thick adjustable MS cradle |
Optoelectronics
| Light Source | Color Rendering Index (CRI) | Correlated Color Temperature | Luminous Efficacy | Beam Angle of Light Source | Median Useful Life L70B50 |
| SMD Type High Power LED | >70 | 6500 k / 5000 k / 2700 k | 135 Lumens / Watt | 120° | 50,000 Hour(s) |
Electronics
| Driver | Setup Rise Holdup Time for Driver | Efficiency of Driver | THD in % |
| Single Stage Fly back with PF Correction C.C. Driver | < 0.5 sec | ≥ 87% | ≤ 10% (Full Load) |
Protection
| Voltage Protection | Surge Protection | Over Heat Protection | Short Circuit Protection | Ingress Protection Code | Impact Protection Code |
| Phase to Phase protection of 440V for 8 Hrs. | 4kV - Inbuilt in Driver | Yes (Drop Output Current) | Yes (Auto recovery) | IP - 65 | IK - 05 |
Operating & Electrical
| Voltage Input | Line Frequency | Power Factor | Working Temperature |
| 130 to 280 VAC | 50 Hz | ≥ 0.95 | − 10˚C - +50˚C. |
| Product Code | Ordering Code | System Power (W) | Rated Voltage (V) | Mains Current (A) | System Lumens (Lm) |
| PLBL 528 / 60 | PLBL 528 / 72 / 125 | 60 W | 230 VAC | 0.27 A | 6700 |
| PLBL 528 / 100 | PLBL 528 / 120 / 125 | 100 W | 230 VAC | 0.46 A | 11150 |
| PLBL 528 / 150 | PLBL 528 / 180 / 125 | 150 W | 230 VAC | 0.69 A | 16750 |
| PLBL 528 / 200 | PLBL 528 / 240 / 125 | 200 W | 230 VAC | 0.92 A | 22300 |
