Bay Channel

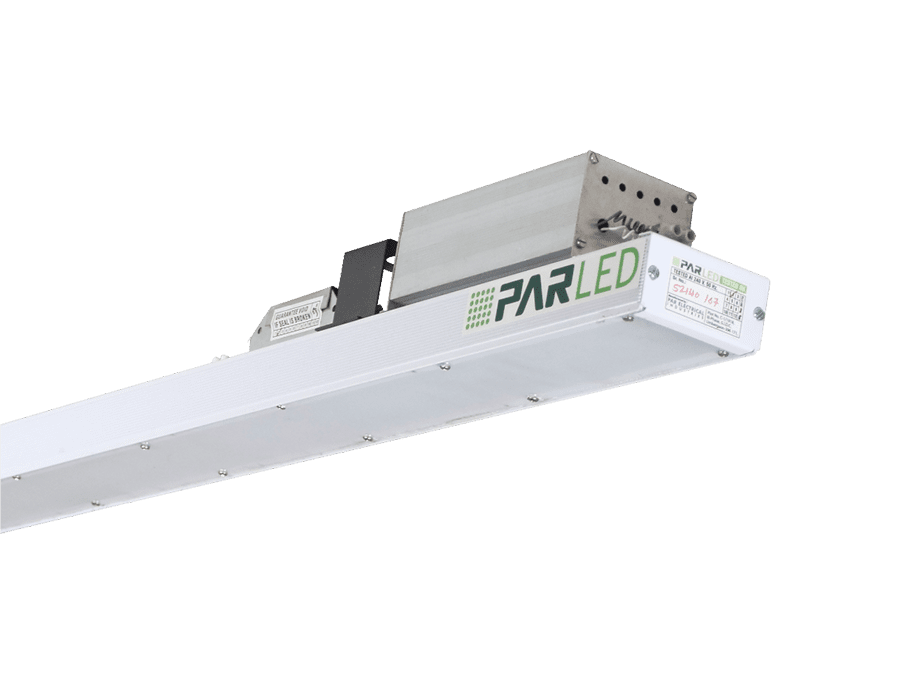

The Channel Star is a streamlined LED bay-light solution that delivers bright, uniform illumination for warehouses and manufacturing spaces. Its extruded aluminium heat sink provides excellent thermal management, ensuring stable LED performance and long service life. With a robust, purpose-built design, it serves as an ideal upgrade from traditional linear industrial luminaires. Available in 2 ft, 3 ft, and 4 ft lengths, Channel Star offers quick installation, low maintenance, and versatile application across industrial environments.
Precision-Engineered Housing
Crafted with a robust extruded aluminium body that delivers superior thermal management, enhanced durability, and a sleek, modern industrial aesthetic.
Long LED Life
Optimized thermal performance ensures extended LED lifespan, delivering consistent high-quality illumination over years of operation with minimal lumen depreciation.
Low Maintenance Design
Built for reliability, the Channel Star reduces downtime with a sealed, durable construction that minimizes service requirements and keeps performance steady in demanding environments.
Effortless Installation
Designed for installer convenience, the lightweight linear form factor and intuitive mounting options allow fast, hassle-free setup across a wide variety of industrial spaces.
Safe Keeping
Equipped with an advanced electronic driver and multi-level protection features, Bay Channel delivers unmatched safety, reliability, and long-lasting durability.
Enhanced Safety
Built-in 10kV/5kA surge protection device.
Luminaire Construction
| Hosing Material | Hosing Finished | Optical Cover Material | Mounting Bracket |
| Anodized Extruded Alluminum (Copper Content <0.1%) | Powder Coated | Polycarbonate Diffuser | Suspension by Conduit pipe OR Chain. |
Optoelectronics
| Light Source | Color Rendering Index (CRI) | Correlated Color Temperature | Luminous Efficacy | Beam Angle of Light Source | Median Useful Life L70B50 |
| SMD Type High Power LED | >70 | 6500 k | 125 Lumens / Watt | 120° | 50,000 Hour(s) |
Electronics
| Driver | Setup Rise Holdup Time for Driver | Efficiency of Driver | THD in % |
| Single Stage Fly back with PF Correction C.C. Driver | < 0.5 sec | ≥ 87% | ≤ 10% (Full Load) |
Protection
| Voltage Protection | Surge Protection | Over Heat Protection | Short Circuit Protection | Ingress Protection Code | Impact Protection Code |
| Phase to Phase protection of 440V for 8 Hrs. | 6.5kV - Inbuilt in Driver | Yes (Drop Output Current) | Yes (Auto recovery) | IP - 50 | IK - 05 |
Operating & Electrical
| Voltage Input | Line Frequency | Power Factor | Working Temperature |
| 130 to 280 VAC | 50 Hz | ≥ 0.95 | − 10˚C - +50˚C. |
| Product Code | Ordering Code | System Power (W) | Rated Voltage (V) | Mains Current (A) | System Lumens (Lm) |
| PLBL 521 / 18 | PLBL 521 / 48 / 100 | 18 W | 230 VAC | 0.08 A | 1850 |
| PLBL 521 / 40 | PLBL 521 / 72 / 100 | 40 W | 230 VAC | 0.18 A | 3750 |
| PLBL 521 / 50 | PLBL 521 / 96 / 100 | 50 W | 230 VAC | 0.23 A | 4950 |
