- Luminary efficacy reaches 115 lm/W, which gives more than 50% of energy saving when compared to T8 Batten with same light level.
- Patented diffuser: Better heat conduction, no embrittlement, no yellowing.
- Reliable and robust housing structure, maximise the endurance over the life time.
- Good colour uniformity and colour rendering (CRI>80).
- High quality cool, neutral and warm white light with high colour consistency.
- World class, approbated quality components (LEDs / Driver / etc.).
- Low maintenance cost.
- Lifetime of over 50,000 hours, which requires no lamp replacement after installation.

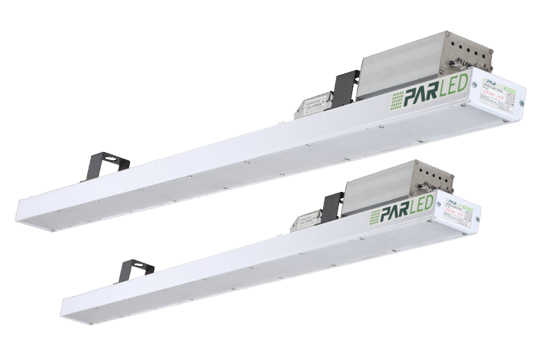

| Family Name | Channel Star |
|---|---|
| Model | PLBL (521) |
| Wattage | 20Watt / 30Watt / 40Watt |
| Lumen / Watt | 130 lm/W |
| Lamp Colour | 2700K, 4700K, 6500K |
| Colour Rendering Index | >80 |
| Optics | HET (High Efficiency Translucence) Diffuser. |
| Driver | Integrated (Constant current driver) |
| Surge Protection | 10 kV |
| Housing | Extruded Aluminum housing finished by white coating. |
| Lifetime | 50, 000 hrs |
| Classifications | IP54 |
| Input Voltage | 180 - 270V AC - 50Hz |
| Power Factor | > 0.95 |
| Installation | Suspended mounting by means of 19mm conduits. |
| Application | Indoor industries, warehouse, underground parking, convenience store. |
- In-built integrated electronic LED driver
| Product Code |
Ordering Code |
LED Wattage (W) |
System Wattage (W) |
Rated Voltage (V) |
Main Current (A) |
Lumens | Approx Weight (Kg) |
Case Lot (In Nos.) |
|---|---|---|---|---|---|---|---|---|
| PLBL 521 / 20 | PLBL 521 / 48 / 125 | 18 | 20 | 230 | 0.10 | 2100 | 1 No | |
| PLBL 521 / 30 | PLBL 521 / 72 / 125 | 27 | 30 | 230 | 0.15 | 3200 | 1.800 | 1 No |
| PLBL 521 / 40 | PLBL 521 / 96 / 125 | 36 | 40 | 230 | 0.20 | 4200 | 2.400 | 1 No |
- Suitable for Suspended mounting by means of 19mm conduits.
